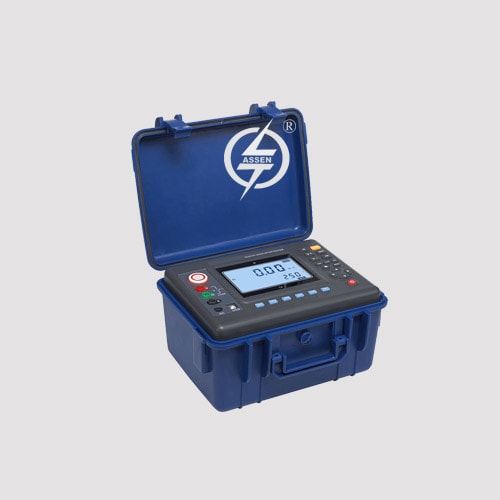

IST(5KV~15KV)High Voltage Micro Ohm Meter,Insulation Resistance Tester Kit

IST high voltage Mirco Ohm Meter kit is suitable for measuring the resistance value of various insulating materials and the insulation resistance of transformers, motors, cables and electrical equipment.

ISF High Voltage Ohm Meter has a large LCD screen gray backlit display, data storage, data access, alarm, and automatic shutdown functions.

Description

IST High Voltage Micro Ohm Meter

Usage

The IST series High voltage Micro Ohm Meter tester is suitable for measuring the resistance value of various insulating materials and the insulation resistance of transformers, motors, cables, and electrical equipment. The safety performance of the instrument complies with the international standard IEC61010-1: 2001.

Features

1.IST High voltage micro ohm meter with 5 range: 500V, 1000V, 2500V, 5000V, 10000V, 15000V,test up to 15TΩ, manual voltage regulation function.

2.Strict accordance with safety standards.

3.Insulation resistance range 15TΩ @ 15kV.

4.The short-circuit current can be adjusted up to 5mA (optional for 10mA).

5.Automatically display the polarization index (PI), the induced absorption ratio (DAR) test value, and test the leakage current and capacitance.

6.Excellent anti-interference performance, the instrument still guarantees the test accuracy when the interference current reaches 2mA.

7.Two power modes: used by a lithium-ion battery, its life up to 4 hours (10000V@100MΩ).

8.Insulation resistance simulation column.

9.Perfect protection function and equipped with the spare fuse blowing prompt function (alarm).

ohm meter

Ohm meter's Specification

Safety Standard



IEC 61010-1

CAT.IV  600V

IEC 61326

EMC specification: test, control and electrical equipment for testing

IEC60529 IP64

(Outer closed state)

AC Power

220V±10%,50/60 HZ ,20 VA

Battery

16.8V Lithium ion rechargeable battery

Battery Life

10000V@100M, 4 hour

Size(L x W x H)(mm)

370*270*170

Weight

3.6KG

Test voltage accuracy

the nominal value  100% to 110%

Voltage measurement accuracy

5%+3V

Current test range

10mA

Current measure precision

5%+0.2nA

Short-circuit current

5mA

Capacitance test range

20uF

Capacitance testing accuracy

15%+0.03uF

Insulation resistance testing range and accuracy (T:23±5ºC ,RH :45 – 75%)

Accuracy range

500V

1000V

2500V

5000V

10000V

15000V

Unspecified

<1M

<1M

<1M

<1M

<1M

<1M

5%

1M-10G

1M-20G

1M-100G

1M-100G

1M-200G

100k-200G

20%

10G -100G

20G-200G

100G-1T

100G-1T

200G-2T

200G -2T

Unspecified

> 100G

> 200G

> 1T

> 1T

> 2T

>2T
